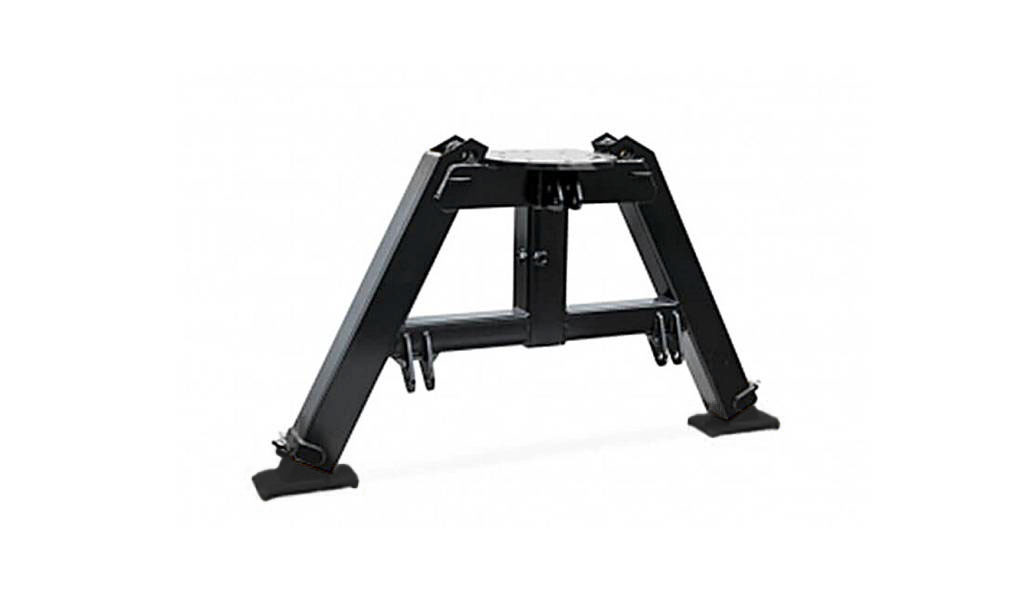

The 3-Point attachment normally is used to hitch forestry cranes to agricultural wheel tractors via a three-point linkage system. This solution is very convenient for a tractor user which needs flexibly and speed in changing various tractor attachments.
It complies with ISO+370-1:1994 standard and has telescopic hydraulic supports for reliable stabilization. Corresponds to hitching equipment size category II.
- For a complete balance and stability, telescopic support legs (outriggers) are installed
- If tractor’s oil flow is insufficient for desired crane operation speed at idle PTO RPM additionally independent hydraulic system can be integrated
- Well protected hoses for long run damage-free operation
More information about 3-Point Attachment cat. II
Product info
Total weight of the 3-P attachment cat. II is 215kg. The system standardly comes without a valve block. 3-P attachment cat. II fits cranes: FB51L; FB63T; FB63TS
| OPTIONS FOR 3-POINT ATTACHMENT CATEGORY II: |
| Block valves for support legs |
| Independent hydraulic system kit for 3-Point attachment cat. II |
| Height adapter for crane attachment (H = 300 mm) |
For more information contact your local dealer.
