FB15D single-axle trailer has a double beam frame, stable protective grille, rigid and straight drawbar without steering, no brakes, telescopic supports legs with internal cylinders and block valves, parking leg, valve block holder, protective plate for tires, stake fastening, eyelets for tension belt, fixed LED rear lights, 2 pairs of bunks with 4 stakes and tires 10.0/80-12 with grooved profile and valve protection.
- Single-axle trailer with a maximum permissible total weight of 1900 kg
- Ideal for transporting of 1m wood, fixed-length logs and firewood.

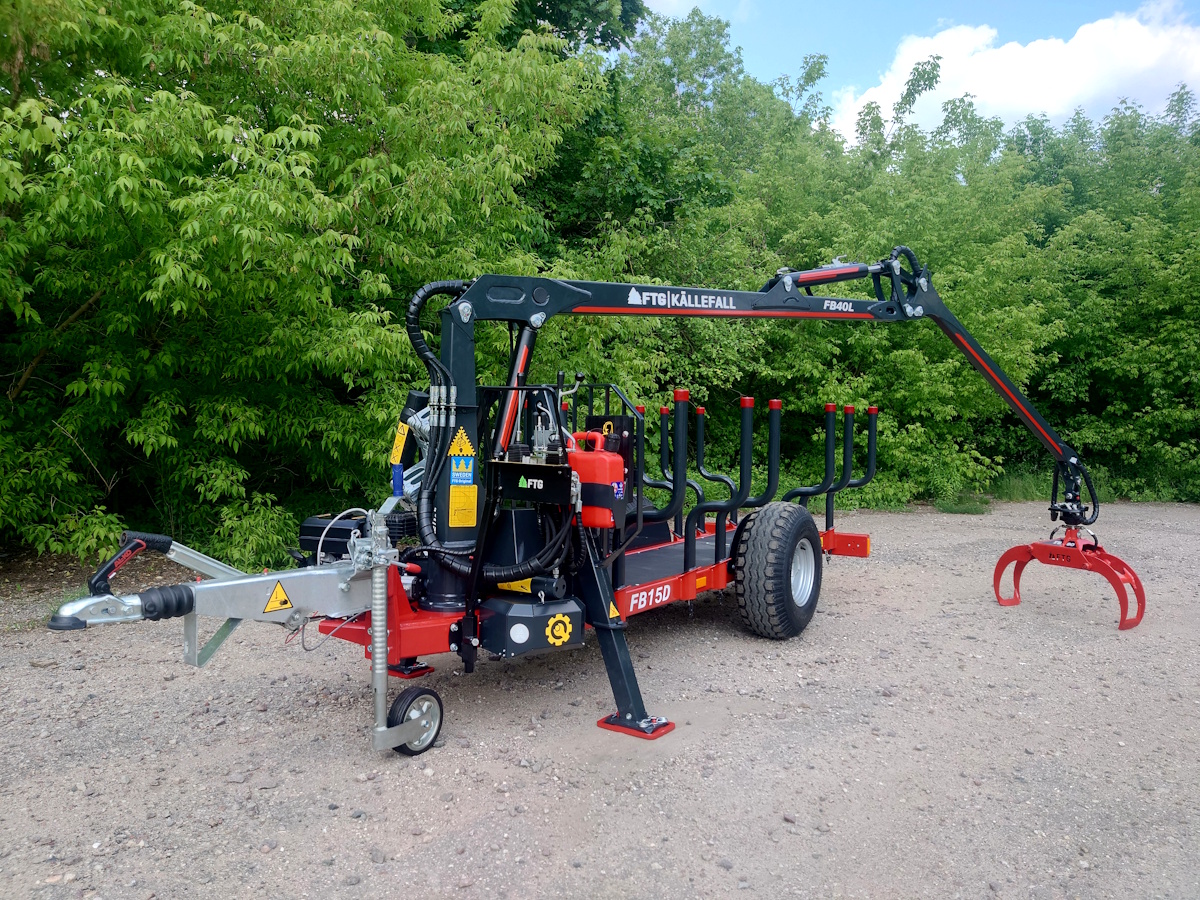

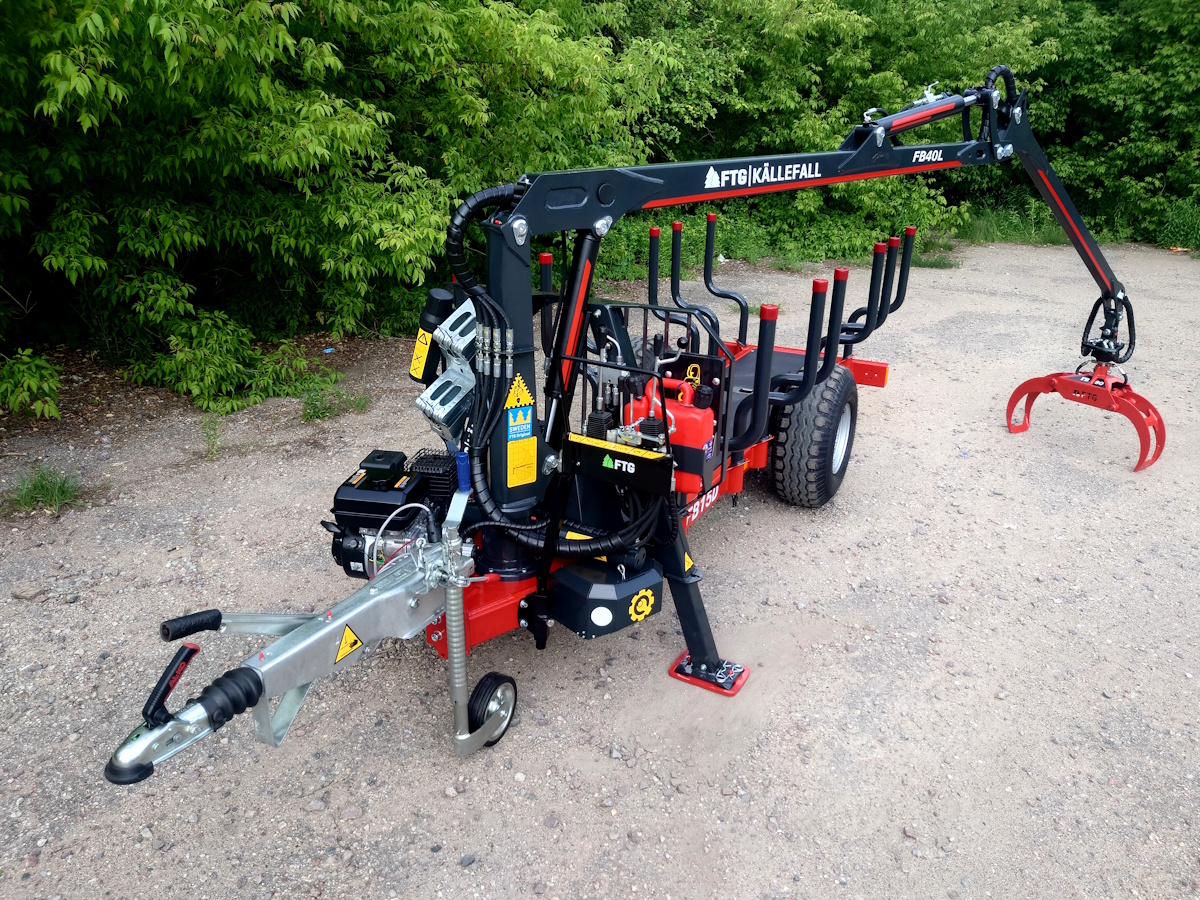

- Trailer combination with crane with a reach of 4 m
More information about Trailer FB15D
Product info
To meet the specific needs of each user, FB15D trailer offers a wide range of options and accessories.
| Cranes for trailer FB15D: |
| Crane FB40L |
Technical info
| GENERAL | |
| Max. permitted total weight *, kg |
1900 |
| Load capacity, kg |
1300 |
| Weight (with standard equipment), kg |
370 |
| Load area, m2 |
0.7 |
| Load length, m |
2.8 |
| Central beam frame, mm |
100×50 |
| STANDARD EQUIPMENT | |
| Drawbar |
straight |
| Drawbar steering |
No |
| Rotating towing eye |
Ø50 mm |
| Hydraulic support legs |
A type (telescopic) |
| Sling loops for tension belt |
Yes |
| Bunks / Stakes |
2 / 4 |
| Wheels |
10.0/80×12 AW |
Accessories
OPTIONS FOR TRAILER FB15D
| Independent hydraulic system: |
| Pump with quick coupling for PTO connection (female) |
| Hydraulic unit with hydraulic motor |
| Brakes: |
| Overrun brakes |
| Other: |
| Drawbar upwards |
| Plywood floor lining |
| Additional pair of stanchions (2 pcs.) |
| Parking wheel |
| Tool box with cover |
| Chainsaw holder |
| Fuel tank holder with tank |
| Protective shoe plate for telescopic support legs |
| Wheel support set |
| Insert plates for brushwood transportation |
