Forestry crane FB47L has a reach of 4,7 meters. It is equipped with a linkage system for an improved movement pattern and has a lifting torque of 24,5 kNm (net) at 4 m reach.
More information about Crane FB47L
Product info

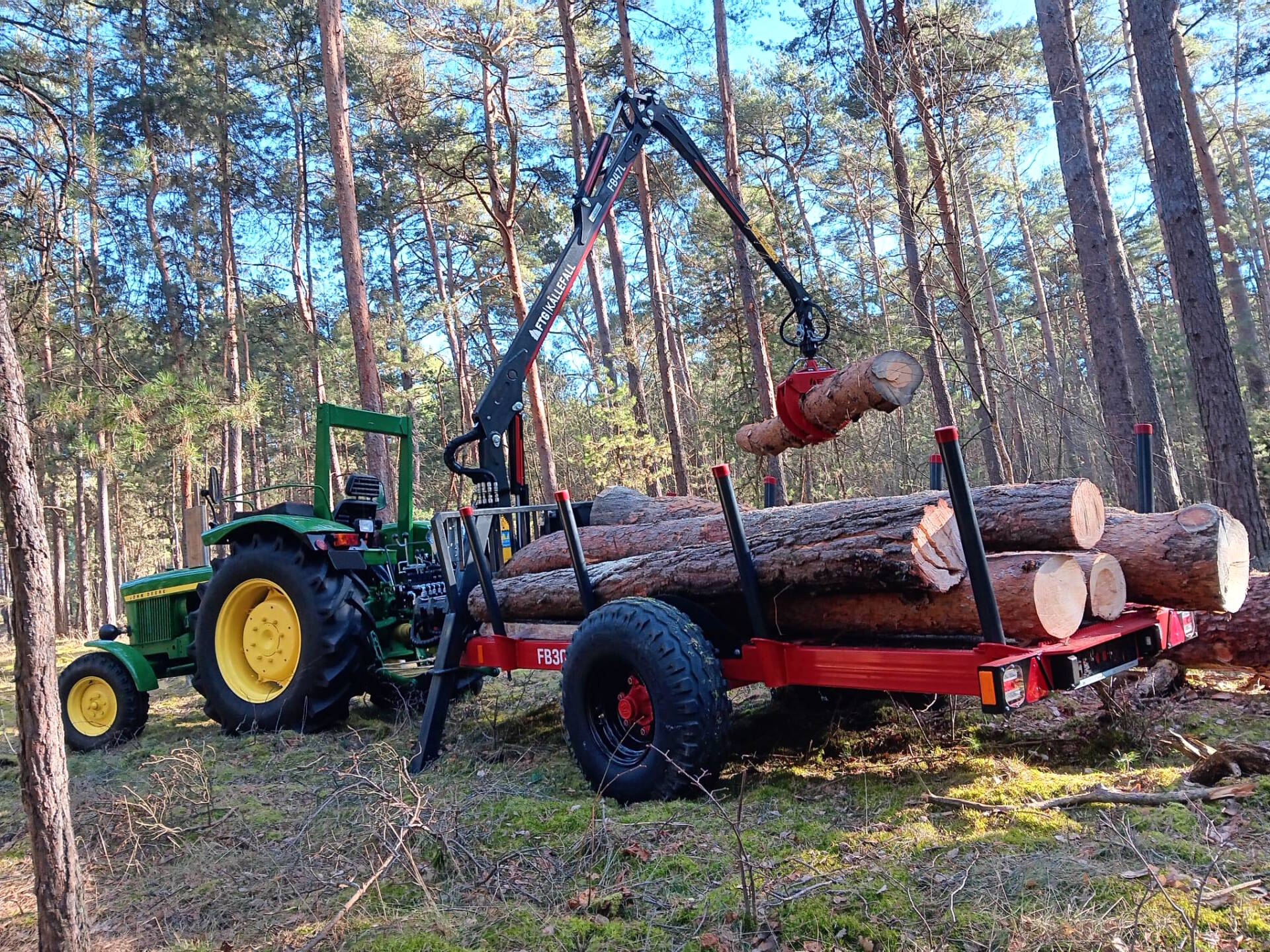

Crane FB47L is equipped with a 3 ton rotator and grapple FB160 by default and is the ideal forestry crane for small tractors and trailers. Rotator link standardly comes without brake however it can be upgraded to a braked version if needed. Crane is equipped with 4-cylinder slewing motor. All our cranes come with connection of hydraulic hoses to rotator installed.
- Clean construction – hoses well protected in the boom
- Main boom ready for winch fitting
- 3-Point attachment frame for tractor available
Many of the construction solutions used in the FB47L crane are based on heavy-duty professional cranes, which makes FTG loader an extraordinarily durable and reliable machine for forest work. The reliable design keeps productivity high and minimizes maintenance costs.

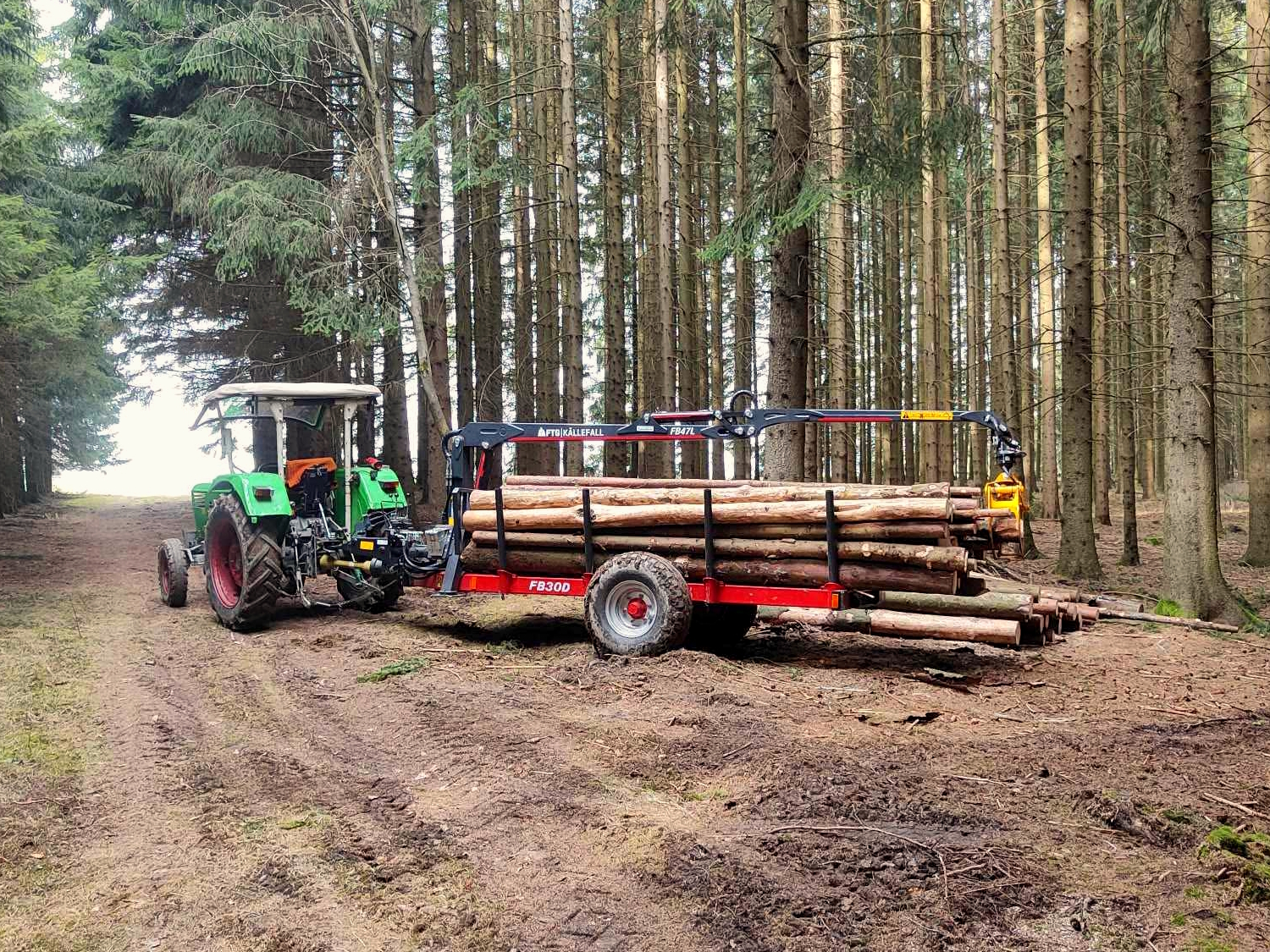

Forest cranes are normally used along with the timber trailers depending on their loading capacity and desirable crane reach. Their installation usually is directly on trailers drawbar prepared crane base.
Another possible installation of loading crane is on agriculture tractors – mounting them to 3-Point attachment and connecting to tractors 3-Point linkage system. Forest cranes are also widely used for wood chippers, splitters etc. Operation by crane is the safest and most efficient way to feed the material.
All our cranes come with a winch ready boom which makes it easy to install it at a later point when demand rises. Winch – an important tool for effective work – extends the working range and makes it easy to collect single logs.
Another fairly important fixture of the cranes’ operation is grapple. Crane FB47L standardly is equipped with the smallest in a range of grapple FB160. A sturdy construction, high-quality components, and a time-tested design solution contribute to the grapple’s long service life. The maximum grip opening width is 1000 mm with 0.16 m2 grip area. All bolts, axle pins, cylinder hose are securely protected.
Wood cranes can be equipped with different control systems according to customers’ wishes. Standardly cranes include mechanical 2 lever/3 coord. valves however you choose an upgrade to ON/OFF, Lightweight, Electro-Hydraulic control system or even Radio-controlled system.
The oil flow necessary to operate the crane FB47L is 20 – 30L/min.
| Crane FB47L suitable for: | |||
| Trailer FB40D | Trailer FB50 | Trailer FB60 | 3-Point attachment frame |
Technical info
| GENERAL | |
| Reach, m | 4.7 |
| Telescopic boom | – |
| Lifting torque (gross), kNm | 28 |
| Lifting torque (net), kNm | 24.5 (4 m) |
| Lifting capacity at 4 m w/o grapple and rotator, kg | 625 |
| Lifting capacity at max. reach (net), kg | 590 |
| Slewing torque, kNm | 4 |
| Slewing angle, ° | 360 |
| Weight (with grapple, rotator, valve block), kg | 465 |
| Recommended pump capacity, l/min | 20-30 |
| Working pressure, bar | 185 |
| STANDARD EQUIPMENT | |
| Slewing cylinders, pcs | 4 |
| Linkage system | yes |
| Rotator | CR300 |
| Rotator link | without pending brake |
| Connection of hydraulic hoses to rotator | yes |
| Grapple | FB160 (0.16 m2) |
| Valve block | FRV60/7A (2-lever / 3-coord) |
Crane FB47L lifting capacity chart
Accessories
| OPTIONS FOR CRANE FB47L |
| Rotator link with pending brake |
| Protection plate for lifting cylinder |
| LED work light for attachment to the crane boom |
| Chainsaw holder |
| Bucket B160 for grapple FB160 |
| Grapple FB190 (0.19 m2) |
| Bucket B190 for grapple FB190 |
| Connection of hydraulic hoses to crane column |
| Shut-off valve for lifting cylinder |
| Supply pressure manometer, for controlling the operating pressure |
| Winch FB800 with remote control |
| 3-Point attachment frame |
| Independent hydraulic system (trailer version) |
| Independent hydraulic system (3-Point attachment frame version) |
| Valve block cover |
| Valve alternatives |
For more information contact your local dealer.
