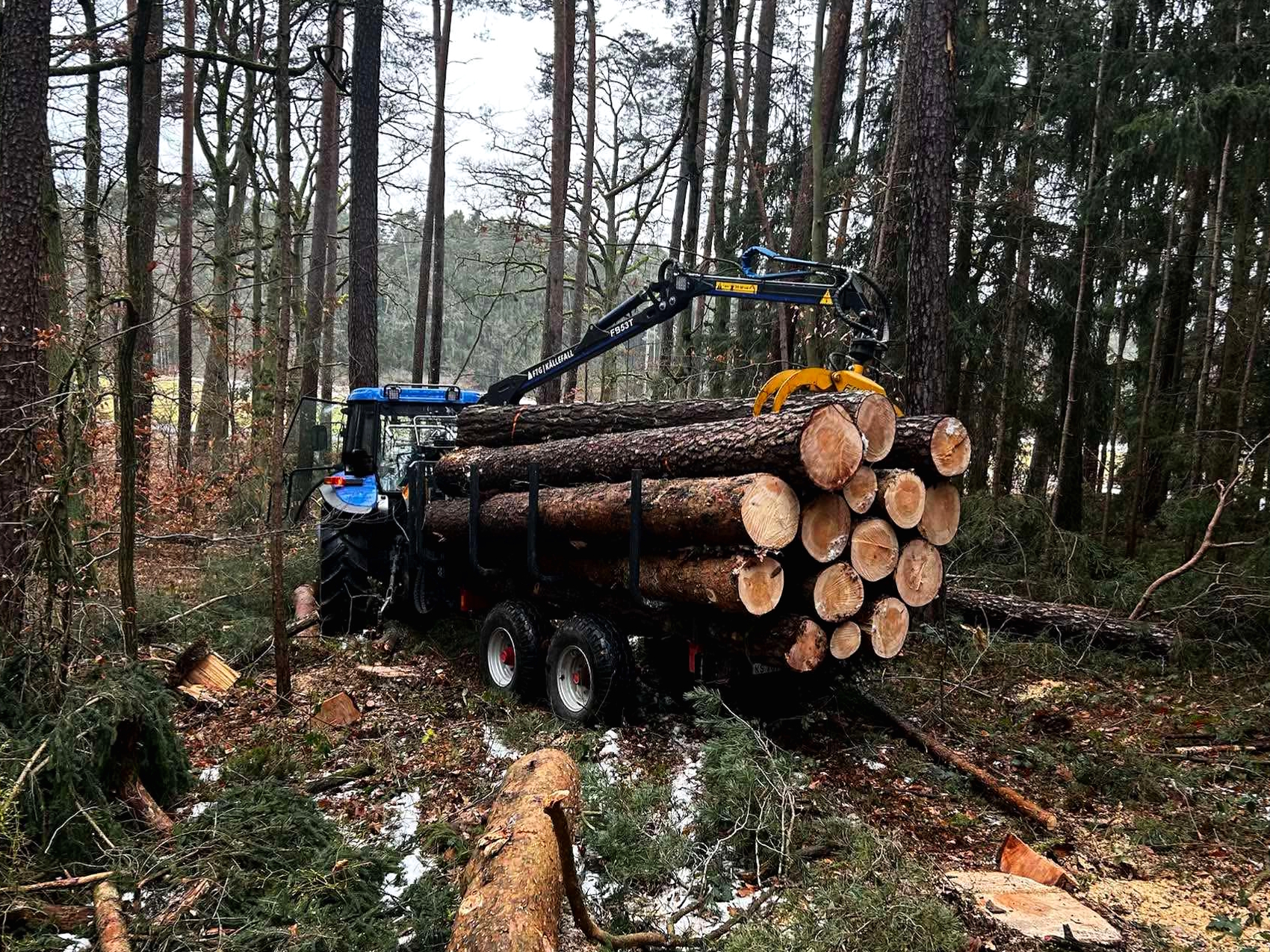

Crane FB53T is equipped with a linkage system and a telescopic arm with an internally positioned telescopic cylinder. This ensures even higher functionality and increased reach compared to cranes without a linkage system. High-quality hydraulic components and reinforced crane booms ensure efficient working time for the years ahead. Well protected and routed hydraulic hoses and steel pipes above the second boom for max. protection from accidental damages.
More information about Crane FB53T
Product info
4 cylinder slew motor gives the slewing motion a smooth start and is especially suitable for heavy-duty applications. Strong and durable structure makes larger payloads and more efficient loading possible. Forestry crane FB53T is equipped with a 3 ton rotator CR300 and grapple FB160 by default and provides a lifting torque of 27 kNm (net) at 5,3 meter reach. All our cranes come with connection of hydraulic hoses to rotator installed.
- Diverse control systems
- Strong and lightweight grapples
- 3-Point attachment frame for tractor available
Many of the construction solutions used in the FB53T crane are based on heavy-duty professional cranes, which makes FTG loader an extraordinarily durable and reliable machine for forest work. The reliable design keeps productivity high and minimizes maintenance costs.

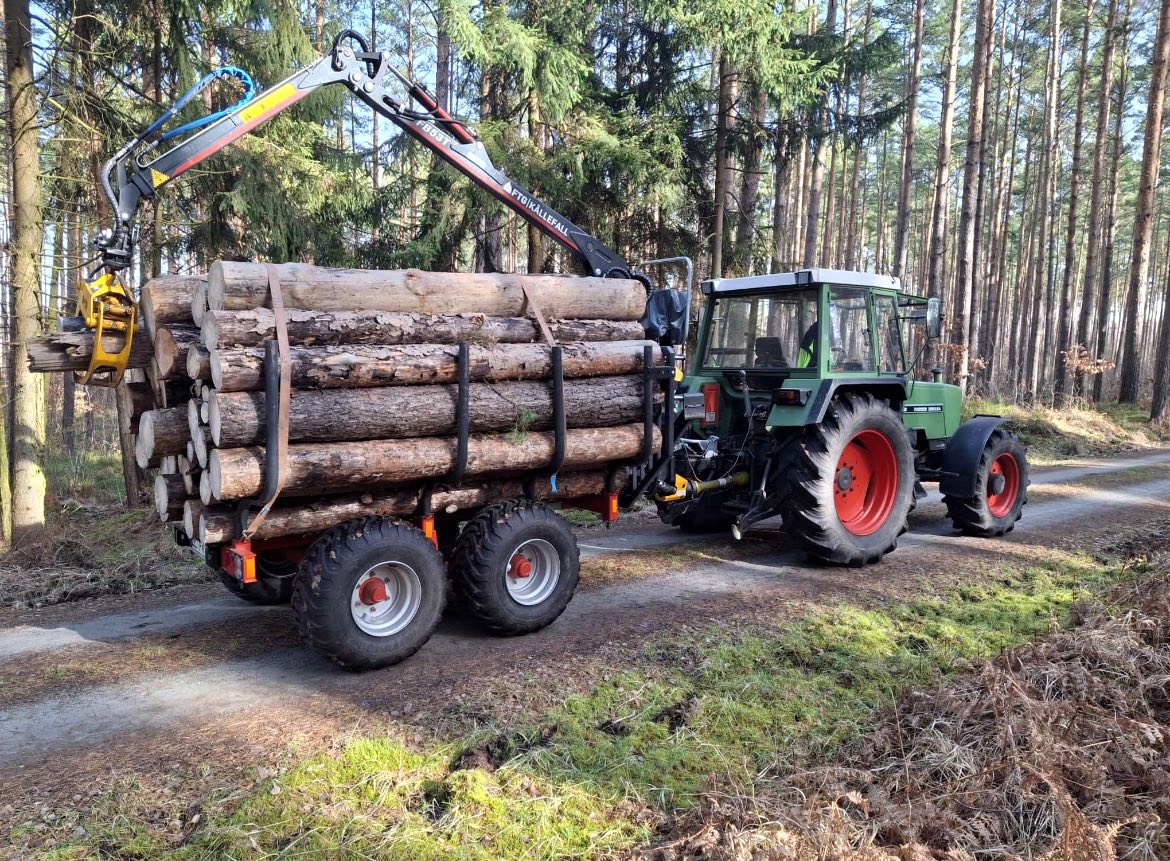

Forest cranes are normally used along with the timber trailers depending on their loading capacity and desirable crane reach. Their installation usually is directly on trailers drawbar prepared crane base.
Another possible installation of loading crane is on agriculture tractors – mounting them to 3-Point attachment and connecting to tractors 3-Point linkage system. Forest cranes are also widely used for wood chippers, splitters etc. Operation by crane is the safest and most efficient way to feed the material.
All our cranes come with a winch ready boom which makes it easy to install it at a later point when demand rises. Winch – an important tool for effective work – extends the working range and makes it easy to collect single logs.
Another fairly important fixture of the cranes’ operation is grapple. Crane FB53T standardly is equipped with the grapple FB160. A sturdy construction, high-quality components, and a time-tested design solution contribute to the grapple’s long service life. The maximum grip opening width is 1010 mm with a 0.16 m2 grip area. All bolts, axle pins, cylinder hose are securely protected.
Wood cranes can be equipped with different control systems according to customers’ wishes. Standardly cranes include mechanical 2 lever/3 coord. valves however you choose an upgrade to ON/OFF, Lightweight, Electro-Hydraulic control system, or even Radio-controlled system.
Recommended oil flow to operate the crane FB53T is 25 – 35L/min.
| Crane FB53T suitable for: | ||||
| Trailer FB30D | Trailer FB40D | Trailer FB60 | Trailer FB70 | 3-Point attachment frame |
Technical info
| GENERAL | |
| Reach, m | 5.3 |
| Telescopic boom | 1.12 |
| Lifting torque (gross), kNm | 32 |
| Lifting torque (net), kNm | 27 (5.0m) |
| Lifting capacity at 4 m w/o grapple and rotator, kg | 700 |
| Lifting capacity at max. reach (net), kg | 510 |
| Slewing torque, kNm | 8.5 |
| Slewing angle, ° | 360 |
| Weight (with grapple, rotator, valve block), kg | 555 |
| Recommended pump capacity, l/min | 25-35 |
| Working pressure, bar | 185 |
| STANDARD EQUIPMENT | |
| Slewing cylinders, pcs | 4 |
| Linkage system | yes |
| Rotator | CR300 |
| Rotator link | with pending brake |
| Connection of hydraulic hoses to rotator | yes |
| Grapple | FB160 (0.16 m2) |
| Valve block | FRV60/8A (2-lever / 3-coord) |
Crane FB53T lifting capacity chart
Accessories
| OPTIONS FOR CRANE FB53T |
| Protection plate for lifting cylinder |
| LED work light for attachment to the crane boom |
| LED work lights for attachment to the crane column |
| Chainsaw holder |
| Bucket B160 for grapple FB160 |
| Round bale grapple attachment for grapple FB160 |
| Connection of hydraulic hoses to crane column |
| Shut-off valve for lifting cylinder |
| Supply pressure manometer, for controlling the operating pressure |
| Winch FB800 with remote control |
| Winch 1410KPL with remote control |
| 3-Point attachment frame |
| Independent hydraulic system (trailer version) |
| Independent hydraulic system (3-Point attachment frame version) |
| Valve block cover |
| Valve alternatives |
For more information please contact your local dealer.
